FLEXIBLE POLISHING PADS WITH VELCRO ADHESIVE ON BACK |
DIAMETRE |
Color Coded Grain Size Available |
Item No. |
INCH |
mm |
Combinations 1: (#50), #100, #200, #400, #800, #1500,(#3000), Buff pad or Combination 2: (#60), #150, #300, #500, #1000, #2000, (#3000), Buff pad |
|
SH--220087 |
3 |
80 |
SH--220088 |
4 |
100/105 |
SH--220089 |
5 |
|

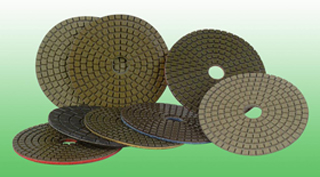

Flexible Polishing Pads,which is integrated grains with resinoid,supply a better performance in grinding stone with polishing effect to get high gloss in a short time,as compared with conventional polishing wheel,it is suitable for the grinding process of the curved or polygon surface. Instructions For Use: |
1. Flexible polishing discs should be mounted on flexible rubber backer pad. |
2. peration speed:600--1200rpm. |
3. Refresh the cooling water adequately, preventing polishing discs or diamond sand from deterioration, but little water for Buff pad {final polish}. |
4. Grinding pressure;1--2kg/cm2. |
5. Grinding or polishing sequence. |
(#50), #100, #200, #400, #800, #1500, (#3000), Buff pad |
(#60), #150, #300, #500, #1000, #2000, (#3000), Buff pad |
|
|
